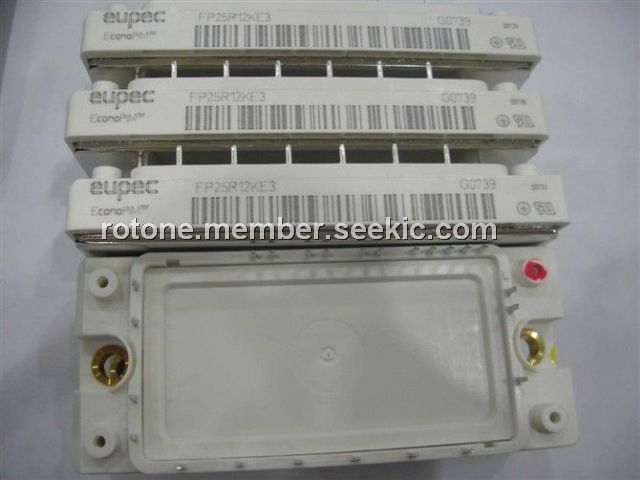

Product Summary

The FP25R12KE3 is a IGBT Module.

Parametrics

FP25R12KE3 absolute maximum ratings: (1)repetitive peak reverse voltage VRRM: 1600 V; (2)maximum RMS current at Rectifier output IRMSmax: 60 A; (3)DC forward current TC = 80℃ Id: 25 A; (4)surge forward current tP = 10 ms, Tvj = 25℃ IFSM: 315 A; tP = 10 ms, Tvj = 150℃ 260 A; (5)I2t - value tP = 10 ms, Tvj = 25℃ I2t: 500 A2s; tP = 10 ms, Tvj = 150℃: 340 A2s.

Features

FP25R12KE3 features: (1)forward voltage Tvj = 150℃, IF = 25 A VF: 1,05 V; (2)threshold voltage Tvj = 150℃ V(TO): 0,8 V; (3)slope resistance Tvj = 150℃ rT: 10,5 mΩ; (4)reverse current Tvj = 150℃, VR = 1600 V IR: 2 mA; (5)lead resistance, terminals-chip: TC = 25℃ RAA+CC: 5 mΩ.

Diagrams

FP25R12KE3 Circuit diagram
