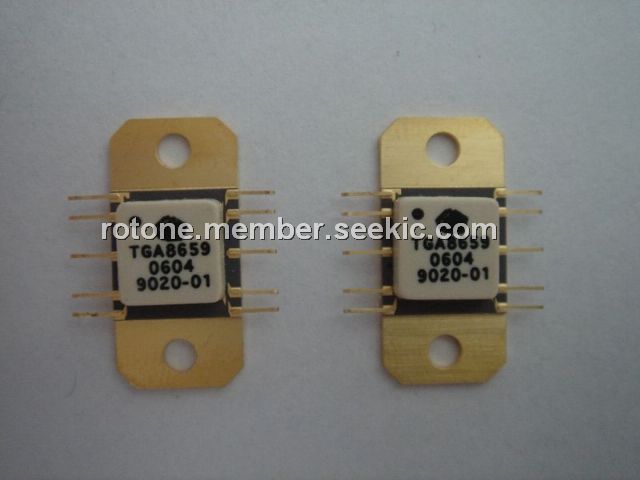

The TriQuint TGA8659 is a packaged Power Amplifier delivering more than 4 Watts in the VSAT Band. The power amplifier works over the extended frequency range of 13 to 17GHz and is designed using TriQuint proven standard 0.5 um gate pHEMT production process. The TGA8659 provides a nominal gain greater than 25dB with excellent input and output VSWR. The TGA8659 is designed for Ku-Band VSAT transmitters and can also provide high power over a wider frequency band.
Parametrics
TGA8659 absolute maximum ratings: (1)V+ Positive Supply Voltage: 8V; (2)I+ Positive Supply Current (Quiescent): 1.7 A; (3)PD Power Dissipation: 13 W; (4)PIN Input Continuous Wave Power: 24 dBm; (5)TCH Operating Channel Temperature: 150 ℃; (6)TM Mounting Temperature (30 seconds): 260 ℃; (7)TSTG Storage Temperature: -65 ℃ to 150 ℃.
Features

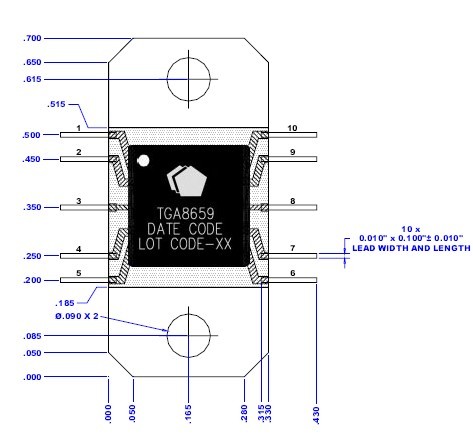

TGA8659 features: (1)Frequency Range: 13 - 15 GHz; (2)>25 dB Nominal Gain; (3)>36 dBm Nominal Psat; (4)Bias 6 - 7.5V @ 1.3 - 1.6A Idq; (5)Package Dimensions: 0.33 x 0.70 x 0.12 in; 8.4 x 17.8 x 3.0mm.
