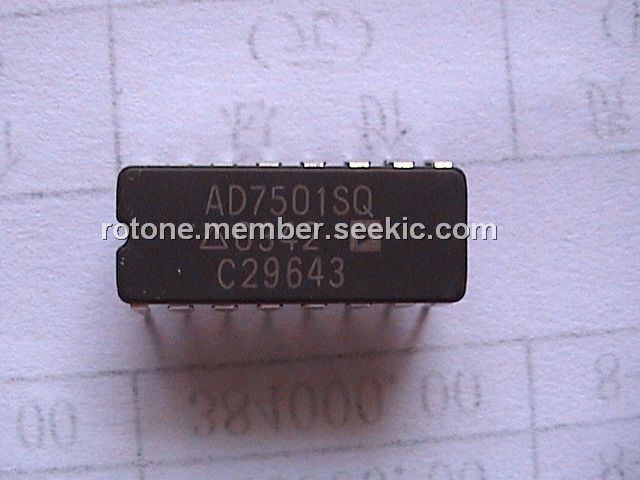

AD7501SQ

Analog Multiplexers, CDIP, 170Ω

Rated 5 Rating 5 | reviews | Write a review

Price:: US $30.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $30.00~50.00

PartNumber:: AD7501SQ

Brand:: Analog Devices - ADI | Pack: CDIP | D/C: 03+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Martina's store

(United Kingdom)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-30

From Other Seller

Part Number:AD7501SQ
US $30.00 - 50.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD7501SQ and AD7503 are monolithic CMOS, 8-channel analog multiplexers which switch one of eight inputs to a common output, depending on the state of three binary address lines and an enable input. The AD7503 is identical to the AD7501SQ except its enable logic is inverted. All digital inputs are TTL/DTL and CMOS logic compatible. The AD7502 is a monolithic CMOS dual 4-channel analog multiplexer. Depending on the state of two binary address inputs and an enable, it switches two output buses to two of eight inputs.

Parametrics

AD7501SQ absolute maximum ratings: (1)VDD to GND: +17 V; (2)VSS to GND: –17 V; (3)V Between Any Switch Terminals1: 25 V; (4)Digital Input Voltage Range: VDD to GND; (5)Overvoltage at VOUT (VS): VSS, VDD; (6)Switch Current (IS, Continuous One Channel): 35 mA; (7)Switch Current (IS, Surge One Channel) 1 ms Duration, 10% Duty Cycle: 50 mA; (8)Power Dissipation (Any Package)Up to +75℃: 450 mW; (9)Derates above +75℃ by 6 mW/℃; (10)Operating Temperature, Commercial (KN Version): 0℃ to +70℃; (11)Industrial (KQ Version): –25℃ to +85℃; (12)Extended (SQ, SE Versions): –55℃ to +125℃; (13)Storage Temperature: –65℃ to +150℃; (14)Lead Temperature (Soldering, 10 sec): +300℃.

Features

AD7501SQ features: (1)DTL/TTL/CMOS Direct Interface; (2)Power Dissipation: 30 μW; (3)RON: 170Ω; (4)Standard 16-Lead DlPs and 20-Terminal Surface Mount Packages.
