Product Summary

The AD7524BQ is a low cost, 8-bit monolithic CMOS DAC designed for direct interface to most microprocessors. Basically an 8-bit DAC with input latches, the AD7524BQ load cycle is similar to the write cycle of a random access memory. Using an advanced thin film on CMOS fabrication process, the AD7524BQ provides accuracy to 1/8 LSB with a typical power dissipation of less than 10 milliwatts. A newly improved design eliminates the protection Schottky previously required and guarantees TTL compatibility when using a +5 V supply. Loading speed has been increased for compatibility with most microprocessors. Featuring operation from +5 V to +15 V, the AD7524BQ interfaces directly to most microprocessor buses or output ports. Excellent multiplying characteristics (2- or 4-quadrant) make the AD7524BQ an ideal choice for many microprocessor controlled gain setting and signal control applications.

Parametrics

AD7524BQ absolute maximum ratings: (1)VDD to GND: –0.3 V, +17 V; (2)VRFB to GND: ±25 V; (3)VREF to GND: ±25 V; (4)Digital Input Voltage to GND: –0.3 V to VDD +0.3 V; (5)OUT1, OUT2 to GND: –0.3 V to VDD +0.3 V; (6)Power Dissipation (Any Package), To +75℃: 450 mW; (7)Derates above 75℃ by: 6 mW/℃; (8)Operating Temperature, Commercial (J, K, L): –40℃ to +85℃; (9)Industrial (A, B, C): –40℃ to +85℃; (10)Extended (S, T, U): –55℃ to +125℃; (11)Storage Temperature: –65℃ to +150℃; (12)Lead Temperature (Soldering, 10 secs): +300℃.

Features

AD7524BQ features: (1)Microprocessor Compatible (6800, 8085, Z80, Etc.); (2)TTL/CMOS Compatible Inputs; (3)On-Chip Data Latches; (4)Endpoint Linearity; (5)Low Power Consumption; (6)Monotonicity Guaranteed (Full Temperature Range); (7)Latch Free (No Protection Schottky Required).

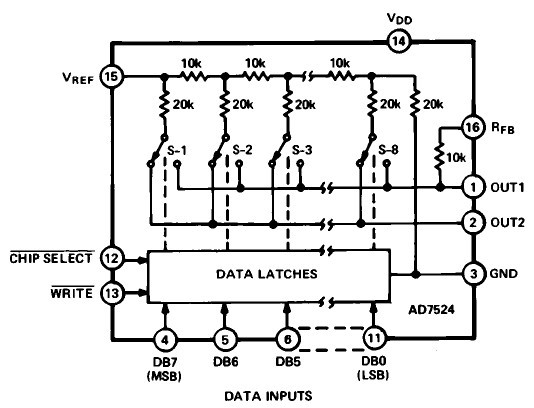

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

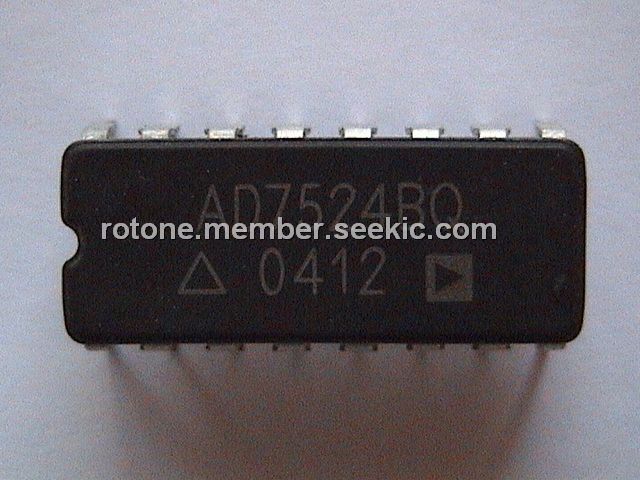

AD7524BQ
AD7524BQ

Analog Devices Inc

IC DAC 8BIT MULTIPLYING 16-CDIP

Data Sheet

Negotiable
