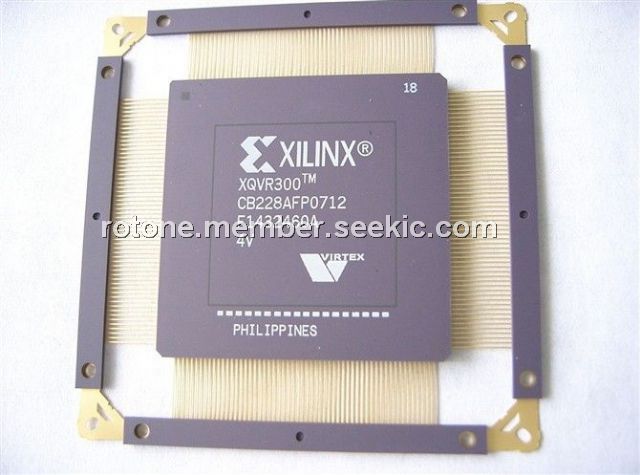

XQVR300-4CB228V

Product Summary

The XQVR300-4CB228V delivers high-performance, high-capacity programmable logic solutions. Dramatic increases in silicon efficiency result from optimizing the new architecture for place-and-route efficiency and exploiting an aggressive 5-layer-metal 0.22μm CMOS process. These advances make XQVR300-4CB228V powerful and flexible alternatives to mask-programmed gate arrays. The Virtex radiation hardened family comprises the three members. Building on experience gained from previous generations of FPGAs, the Virtex family represents a revolutionary step forward in programmable logic design. Combining a wide variety of programmable system features, a rich hierarchy of fast, flexible interconnect resources, and advanced process technology, the XQVR300-4CB228V delivers a high-speed and high-capacity programmable logic solution that enhances design flexibility while reducing time to market.

Parametrics

XQVR300-4CB228V absolute maximum ratings: (1)VCCINT Supply voltage relative to GND: –0.5 to 3.0 V; (2)VCCO Supply voltage relative to GND: –0.5 to 4.0 V; (3)VREF Input reference voltage: –0.5 to 3.6 V; (4)VIN Input voltage relative to GND, Using VREF: –0.5 to 3.6 V; (5)Internal threshold: –0.5 to 5.5 V; (6)VTS Voltage applied to 3-state output: –0.5 to 5.5 V; (7)VCC Longest supply voltage rise time from 1V to 2.375V: 50 ms; (8)TSTG Storage temperature (ambient): –65 to +150℃; (9)TJ Junction temperature: +150℃.

Features

XQVR300-4CB228V features: (1)0.22 μm 5-layer epitaxial process; (2)QML certified; (3)Radiation hardened FPGAs for space and satellite applications; (4)Guaranteed total ionizing dose to 100K Rad(si); (5)Latch-up immune to LET = 125 MeV cm2/mg; (6)SEU immunity achievable with recommended redundancy implementation; (7)Guaranteed over the full military temperature range (-55℃ to +125℃); (8)Fast, high-density Field-Programmable Gate Arrays; (9)Densities from 100k to 1M system gates; (10)System performance up to 200 MHz; (11)Hot-swappable for Compact PCI; (12)Supported by FPGA Foundation. and Alliance Development Systems.

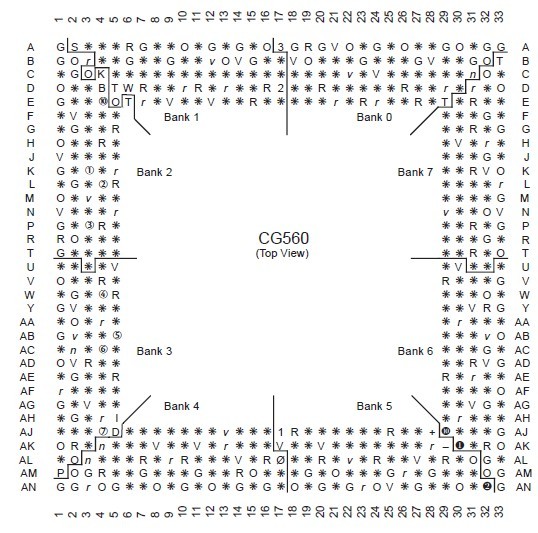

Diagrams
