Product Summary

The MPC8260ACZUMHBB is a Communications Processor.

Parametrics

MPC8260ACZUMHBB absolute maximum ratings: (1)Core supply voltage, VDD: -0.3 to 2.5 V; (2)PLL supply voltage, VCCSYN: -0.3 to 2.5 V; (3)I/O supply voltage, VDDH: -0.3 to 4.0 V; (4)Input voltage, VIN: GND(-0.3) to 3.6 V; (5)Junction temperature Tj: 120 ℃; (6)Storage temperature range TSTG: (-55) to (+150) ℃.

Features

MPC8260ACZUMHBB features: (1)Dual-issue integer core; (2)Separate power supply for internal logic and for I/O; (3)Separate PLLs for G2 core and for the CPM; (4)64-bit data and 32-bit address 60x bus; (5)32-bit data and 18-bit address local bus; (6)Twelve-bank memory controller; (7)CPU core can be disabled and the device can be used in slave mode to an external core; (8)Embedded 32-bit communications processor (CP) uses a RISC architecture for flexible support for communications protocols; (9)Interfaces to G2 core through on-chip 32-Kbyte dual-port RAM and DMA controller; (10)FCC2 can also be connected to the TC layer; (11)Provides serial loop back mode; (12)Cell echo mode is provided.

Diagrams

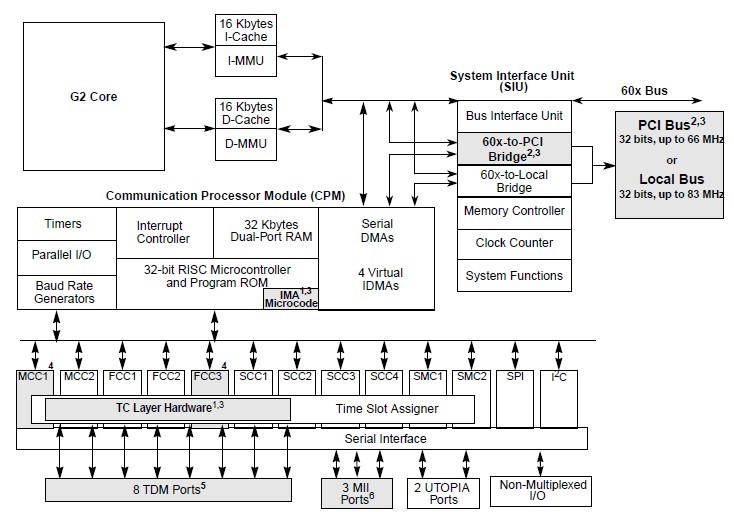

MPC8260ACZUMHBB Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

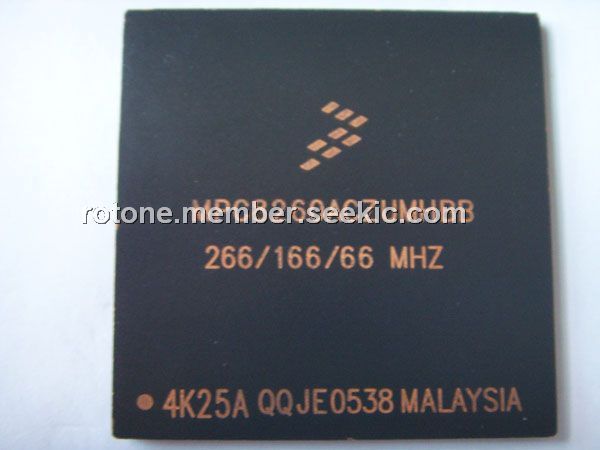

MPC8260ACZUMHBB
MPC8260ACZUMHBB
Freescale Semiconductor
Microprocessors (MPU) POWERQUICC II HIP4 REV B
Data Sheet
0-9: $117.77
9-10: $111.11
10-25: $104.82
25-100: $65.51
