Product Summary
The XC3S400-5FG456C Field-Programmable Gate Array is specifically designed to meet the needs of high volume, cost-sensitive consumer electronic applications. The eight-member family offers densities ranging from 50,000 to five million system gates, as shown in Table 1. The XC3S400-5FG456C builds on the success of the earlier Spartan-IIE family by increasing the amount of logic resources, the capacity of internal RAM, the total number of I/Os, and the overall level of performance as well as by improving clock management functions. Numerous enhancements derive from the Virtex®-II platform technology. The XC3S400-5FG456C enhancements, combined with advanced process technology, deliver more functionality and bandwidth per dollar than was previously possible, setting new standards in the programmable logic industry.
Parametrics
XC3S400-5FG456C absolute maixmum ratings: (1)VCCINT Internal supply voltage relative to GND: –0.5 1.32 V; (2)VCCAUX Auxiliary supply voltage relative to GND: –0.5 3.00 V; (3)VCCO Output driver supply voltage relative to GND: –0.5 3.75 V; (4)VREF Input reference voltage relative to GND: –0.5 VCCO+0.5 V.
Features
XC3S400-5FG456C features: (1)Low-cost, high-performance logic solution for high-volume, consumer-oriented applications; (2)Densities up to 74,880 logic cells; (3)Abundant logic cells with shift register capability; (4)Wide, fast multiplexers; (5)Fast look-ahead carry logic; (6)Dedicated 18 x 18 multipliers; (7)JTAG logic compatible with IEEE 1149.1/1532; (8)Up to 1,872 Kbits of total block RAM; (9)Up to 520 Kbits of total distributed RAM.

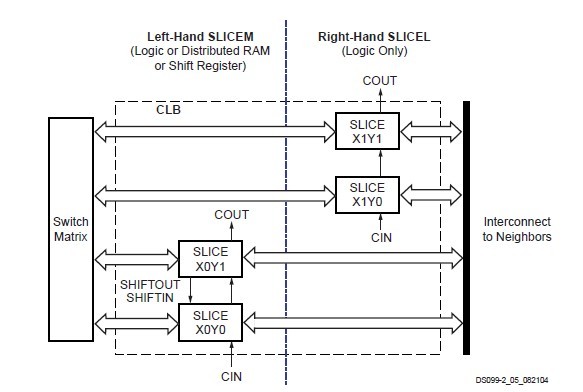

Diagrams
 |
