Product Summary

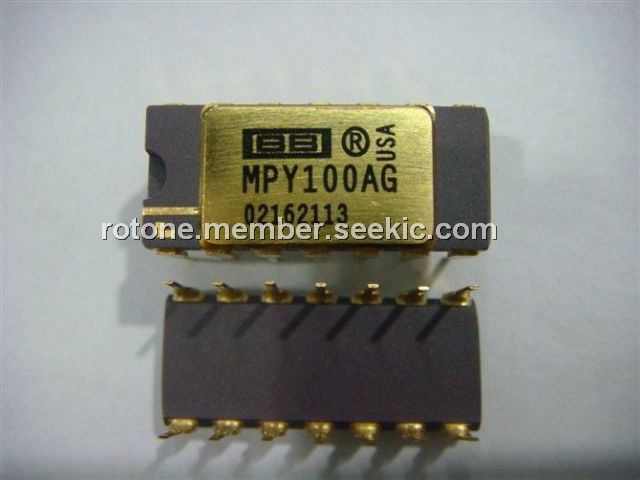

The MPY100AG multiplier-divider is a low cost precision device designed for general purpose application. In addition to four-quadrant multiplication, it also performs analog square root and division without the bother of external amplifiers or potentiometers. Lasertrimmed one-chip design offers the most in highly reliable operation with guaranteed accuracies. Because of the internal reference and pretrimmed accuracies the MPY100AG does not have the restrictions of other low cost multipliers. It is available in both TO-100 and DIP ceramic packages.
Parametrics
MPY100AG absolute maximum ratings: (1)Supply: ±20VDC; (2)Internal Power Dissipation: 500mW; (3)Differential Input Voltage: ±40VDC; (4)Input Voltage Range: ±20VDC; (5)Storage Temperature Range: –65℃ to +150℃; (6)Operating Temperature Range: –55℃ to +125℃; (7)Lead Temperature (soldering, 10s): +300℃; (8)Output Short-circuit Duration: Continuous; (9)Junction Temperature: +150℃.
Features
MPY100AG features: (1)Low cost; (2)differential input; (3)Accuracy 100% tested and guaranteed; (4)No external trimming required; (5)Low noise: 90uVrms, 10Hz to 10kHz; (6)Highly reliable one-chip design; (7)DIP or to-100 type package; (8)Wide temperature operation.

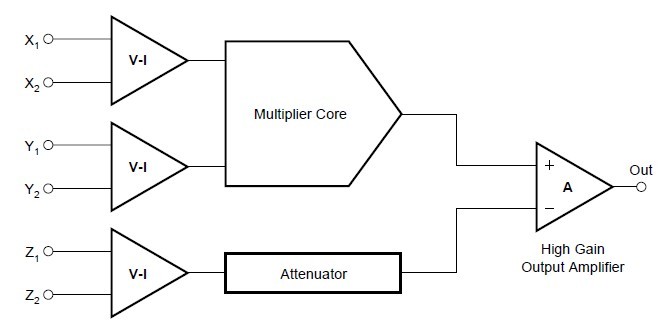

Diagrams
