Product Summary

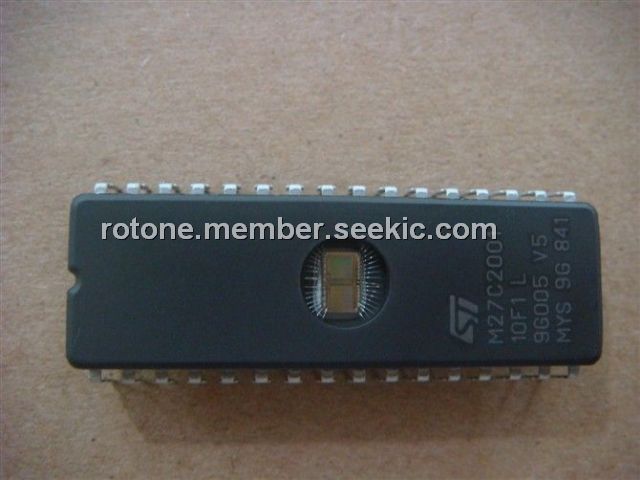

The M27C2001-10F1 is a high speed 2 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large programs and is organised as 262,144 by 8 bits. The FDIP32W (window ceramic frit-seal package) and LCCC32W (leadless chip carrier package) have a transparent lids which allow the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure. For applications where the content is programmed only one time and erasure is not required, the M27C2001-10F1 is offered in PDIP32, PLCC32 and TSOP32 (8 x 20 mm) packages.
Parametrics
M27C2001-10F1 absolute maximum ratings: (1)TA Ambient Operating Temperature: –40 to 125℃; (2)TBIAS Temperature Under Bias: –50 to 125℃; (3)TSTG Storage Temperature: –65 to 150℃; (4)VIO Input or Output Voltage (except A9): –2 to 7 V; (5)VCC Supply Voltage: –2 to 7 V; (6)VA9, A9 Voltage: –2 to 13.5 V; (7)VPP Program Supply Voltage: –2 to 14 V.
Features
M27C2001-10F1 features: (1)5V ± 10% SUPPLY VOLTAGE iREAD OPERATION; (2)ACCESS TIME: 55ns; (3)LOW POWER CONSUMPTION: Active Current 30mA at 5MHz; (4)Standby Current 100mA; (5)PROGRAMMING VOLTAGE: 12.75V ± 0.25V; (6)PROGRAMMING TIME: 100ms/word; (7)ELECTRONIC SIGNATURE: Manufacturer Code: 20h; (8)Device Code: 61h.

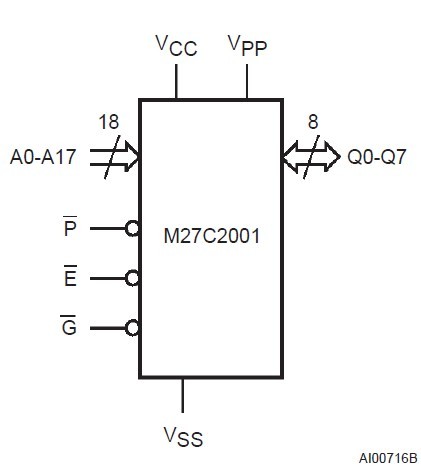

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C2001-10F1 |
STMicroelectronics |
EPROM 2M (256Kx8) 100ns |
Data Sheet |
Negotiable |
|
||||
