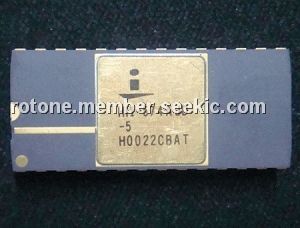

HI1-574AJD-5

A/D Converter, CDIP, 12-Bit

Rated 5 Rating 5 | reviews | Write a review

Price:: US $18.00~30.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $18.00~30.00

PartNumber:: HI1-574AJD-5

Brand:: Intersil Corporation - Intersil | Pack: CDIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Martina's store

(United Kingdom)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-30

From Other Seller

Part Number:HI1-574AJD-5
US $18.00 - 30.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

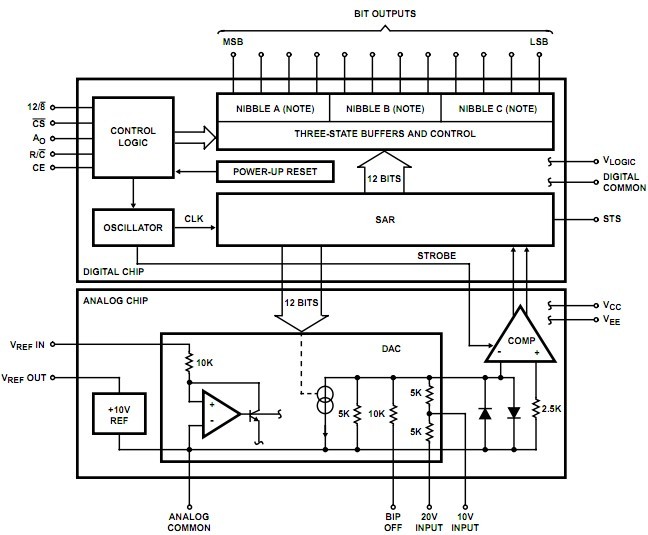

The HI1-574AJD-5 is a complete 12-bit, Analog-to-Digital Converter, including a +10V reference clock, three-state outputs and a digital interface for microprocessor control. Successive approximation conversion is performed by two monolithic dice housed in a 28 lead package. The bipolar analog die features the Intersil Dielectric Isolation process, which provides enhanced AC performance and freedom from latch-up. The HI1-574AJD-5 offers standard unipolar and bipolar input ranges, laser trimmed for specified linearity, gain and offset accuracy. The low noise buried zener reference circuit is trimmed for minimum temperature coefficient.

Parametrics

HI1-574AJD-5 absolute maximum ratings: (1)Supply Voltage, VCC to Digital Common: 0V to +16.5V; VEE to Digital Common: 0V to -16.5V; VLOGIC to Digital Common: 0V to +7V; Analog Common to Digital Common: ±1V; (2)Control Inputs (CE, CS, AO, 12/8, R/C) to Digital Common: -0.5V to VLOGIC +0.5V; (3)Analog Inputs (REFIN, BIPOFF, 10VIN) to Analog Common: ±16.5V; (4)20VIN to Analog Common: ±24V; (5)REFOUT, Indefinite Short To Common, Momentary Short To VCC.

Features

HI1-574AJD-5 features: (1)Complete 12-Bit A/D Converter with Reference and Clock; (2)Full 8-Bit, 12-Bit or 16-Bit Microprocessor Bus Interface; (3)Bus Access Time: 150ns; (4)No Missing Codes Over Temperature; (5)Minimal Setup Time for Control Signals; (6)Fast Conversion Times: 25μs; (7)Digital Error Correction (HI-774); (8)Low Noise, via Current-Mode Signal Transmission Between Chips; (9)Byte Enable/Short Cycle (AO Input): Guaranteed Break-Before-Make Action, Eliminating Bus Contention During Read Operation. Latched by Start Convert Input (To Set the Conversion Length); (10)Supply Voltage: ±12V to ±15V.
